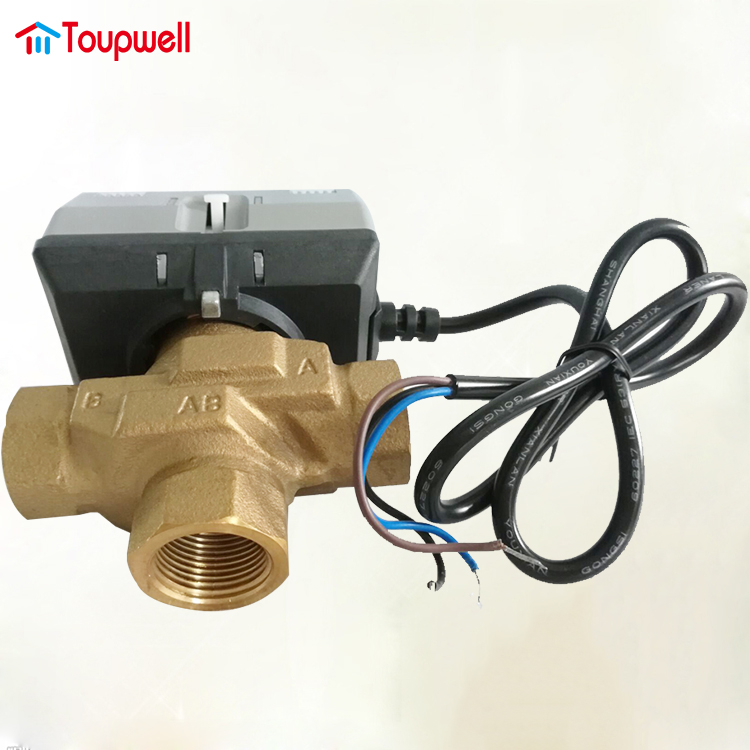

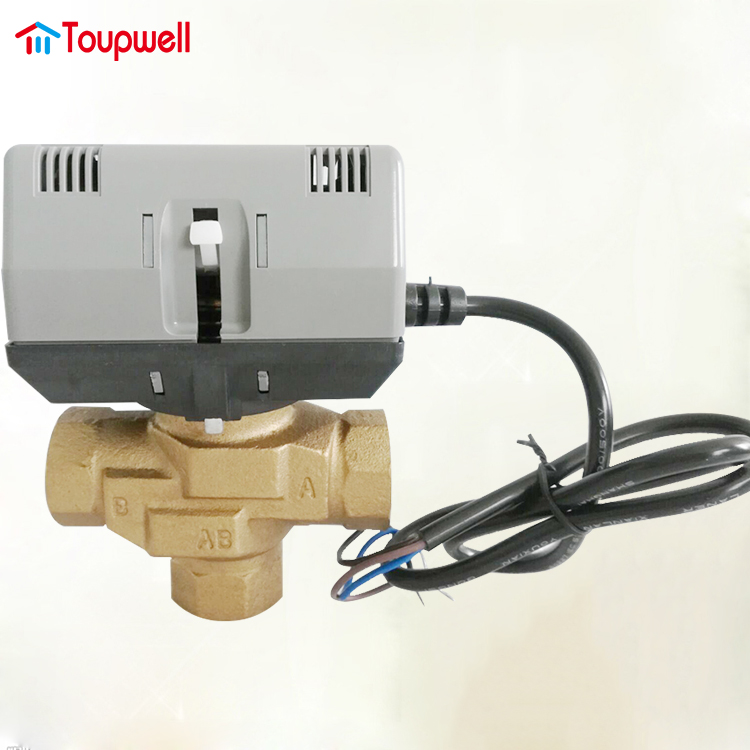

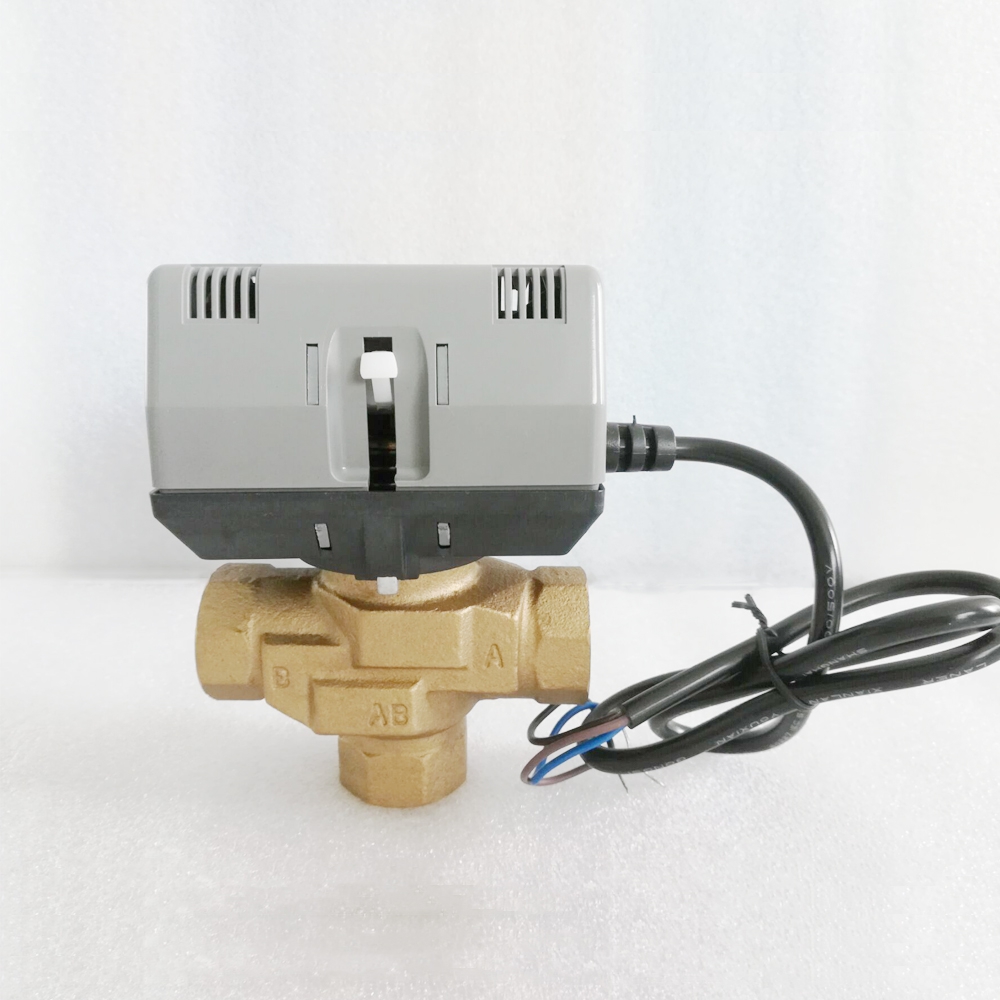

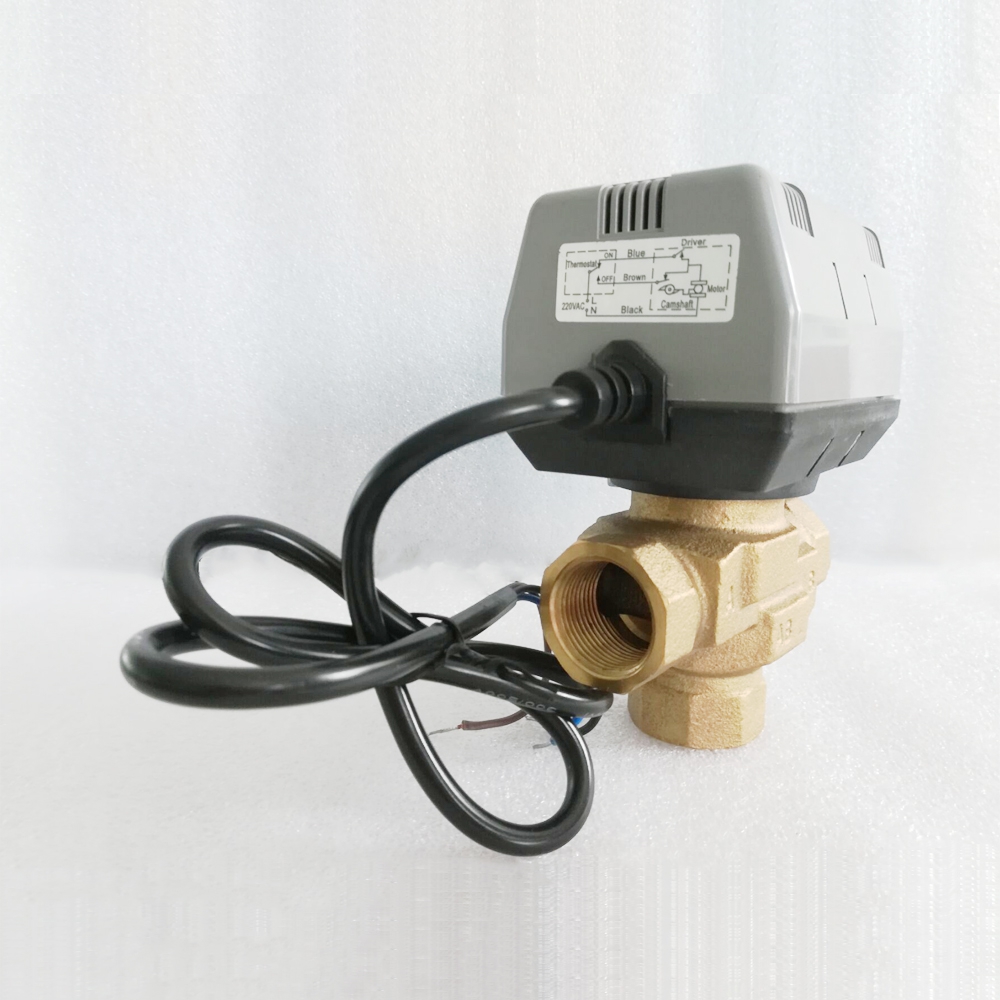

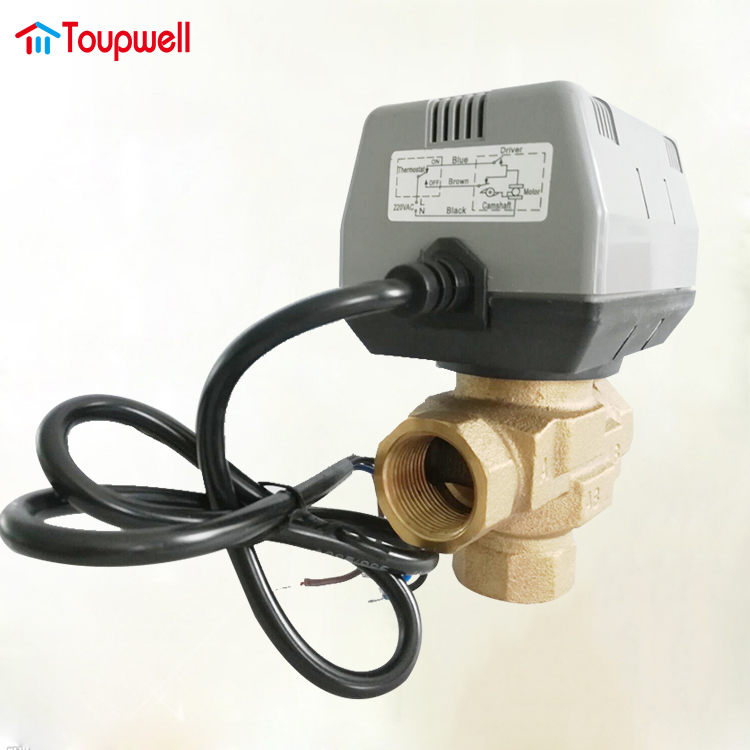

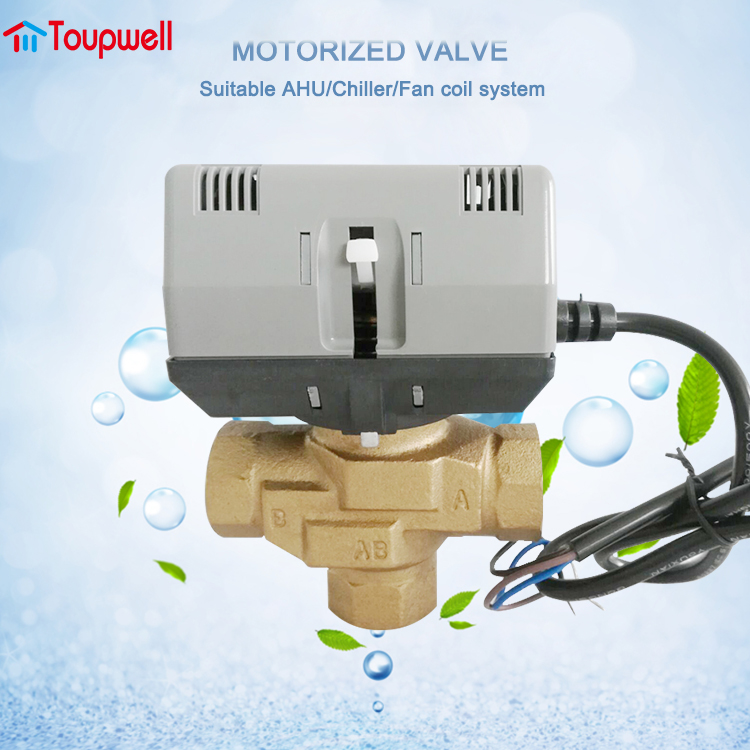

3way SPDT/SPST actautor option Motorized Valve TP40series

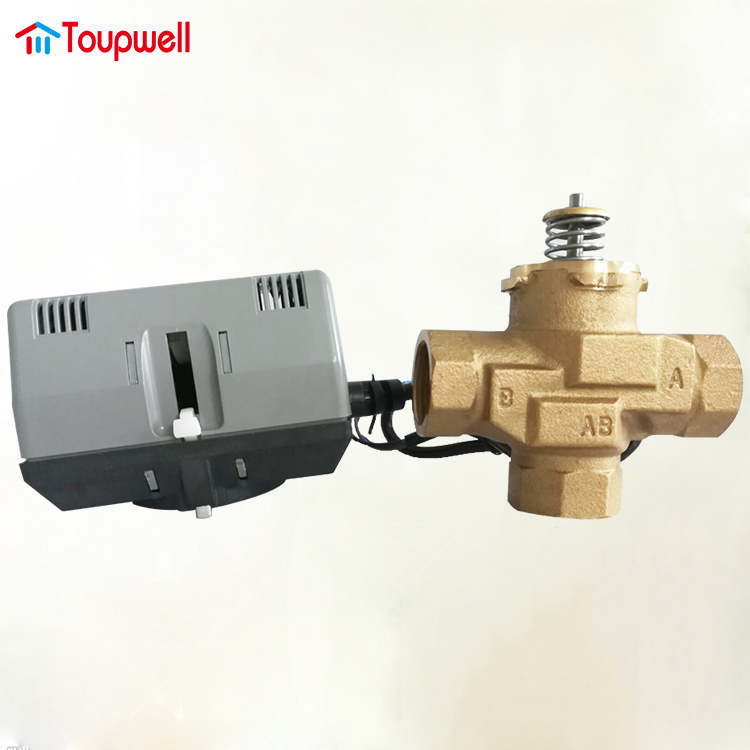

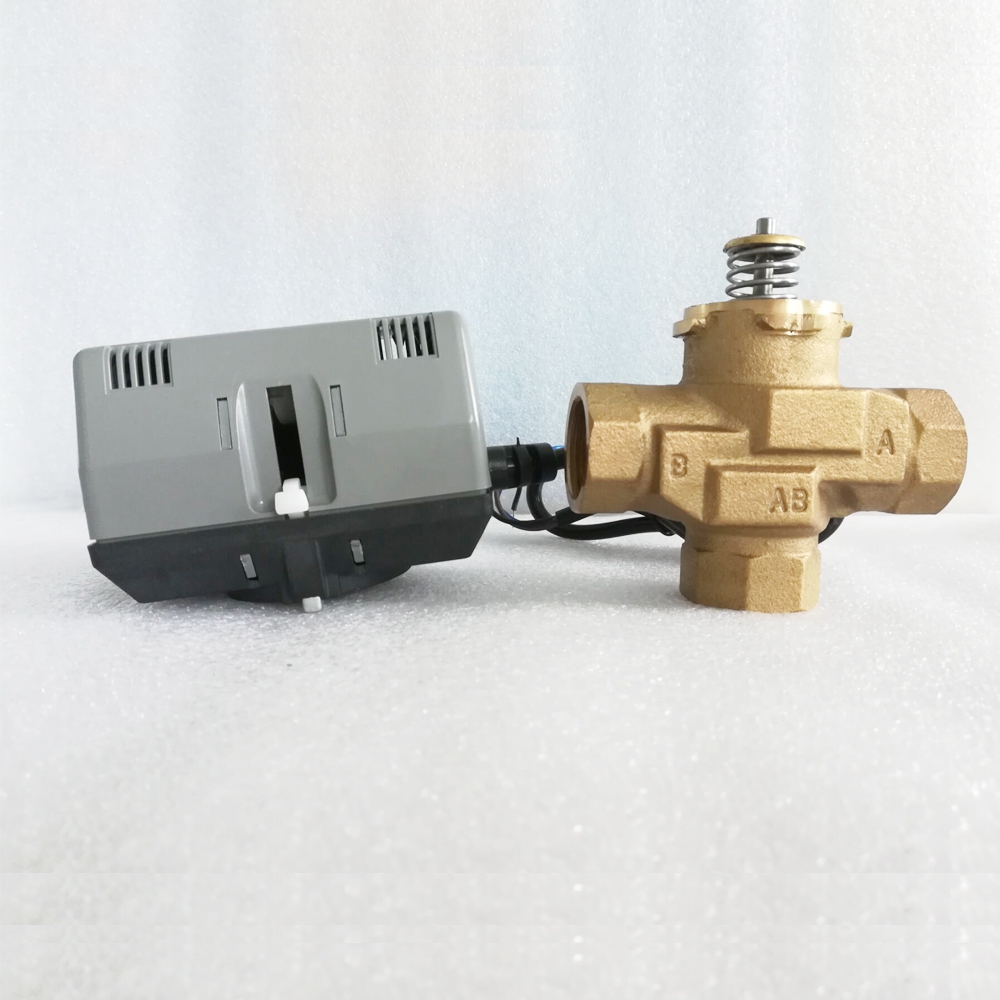

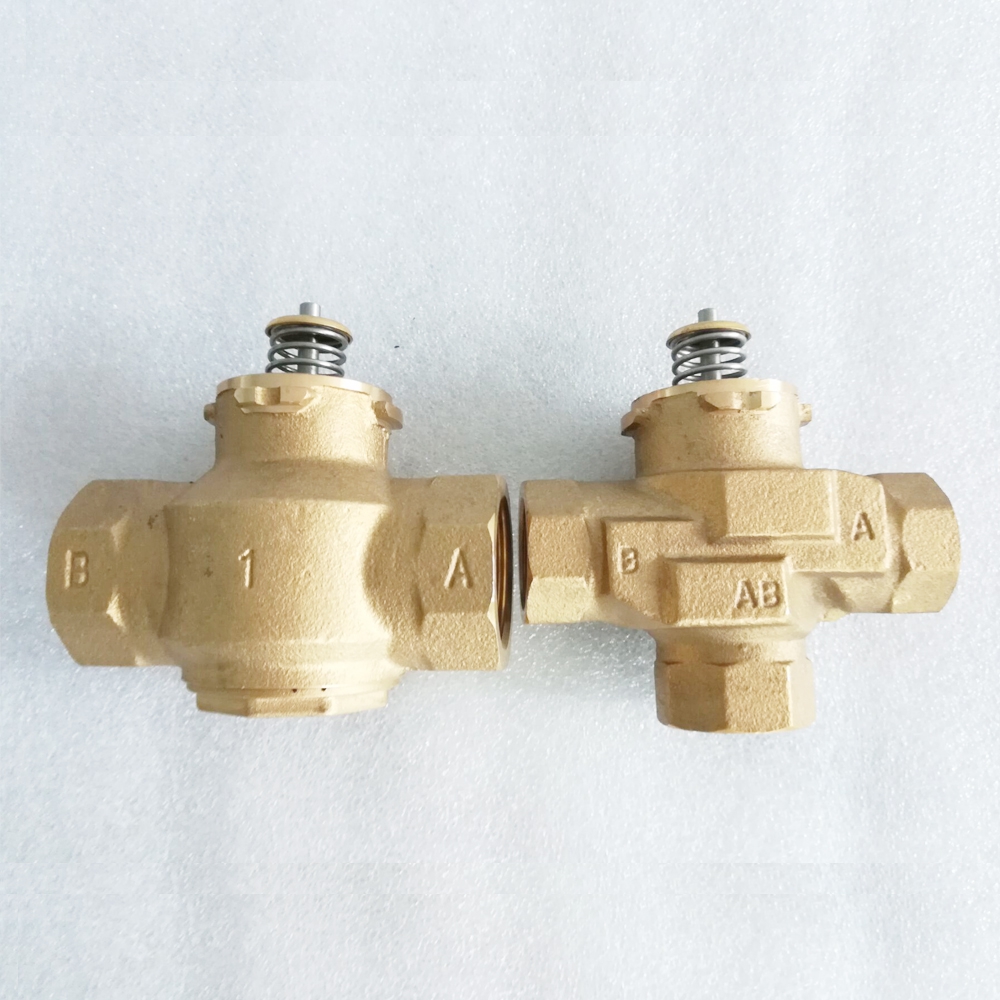

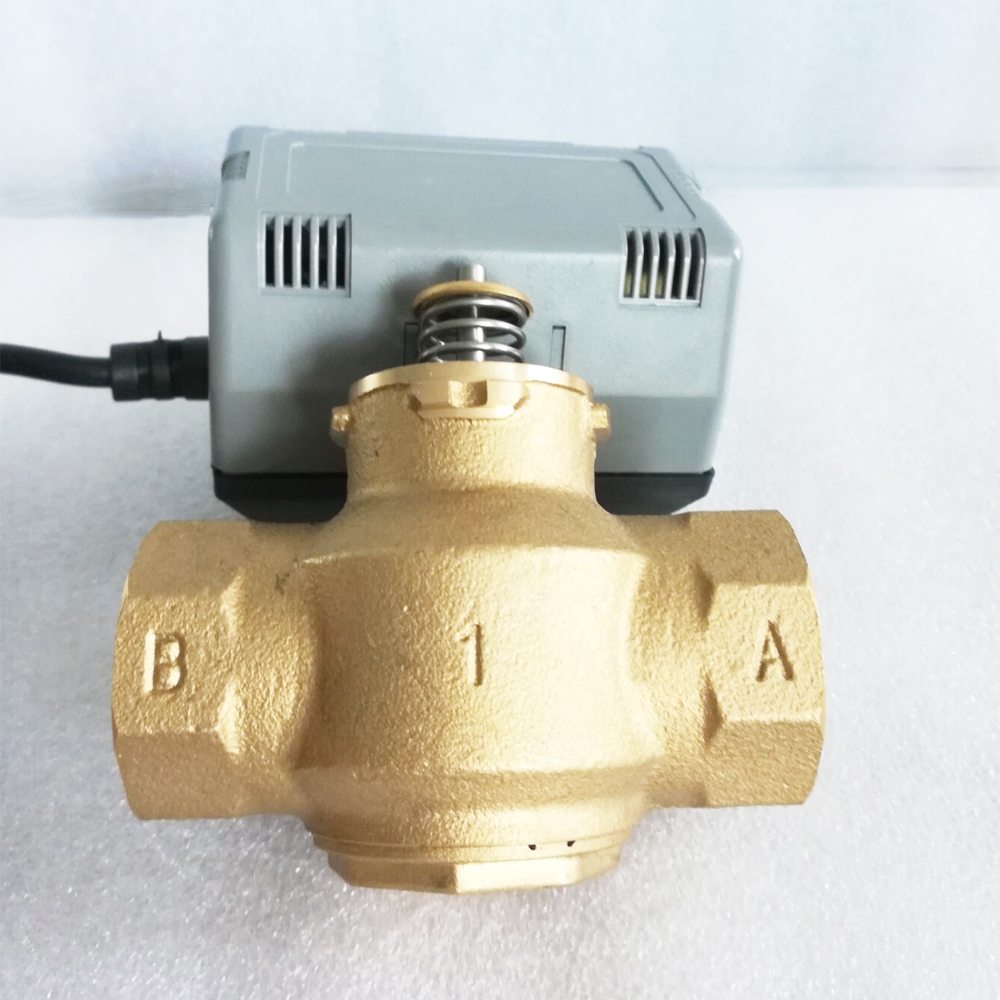

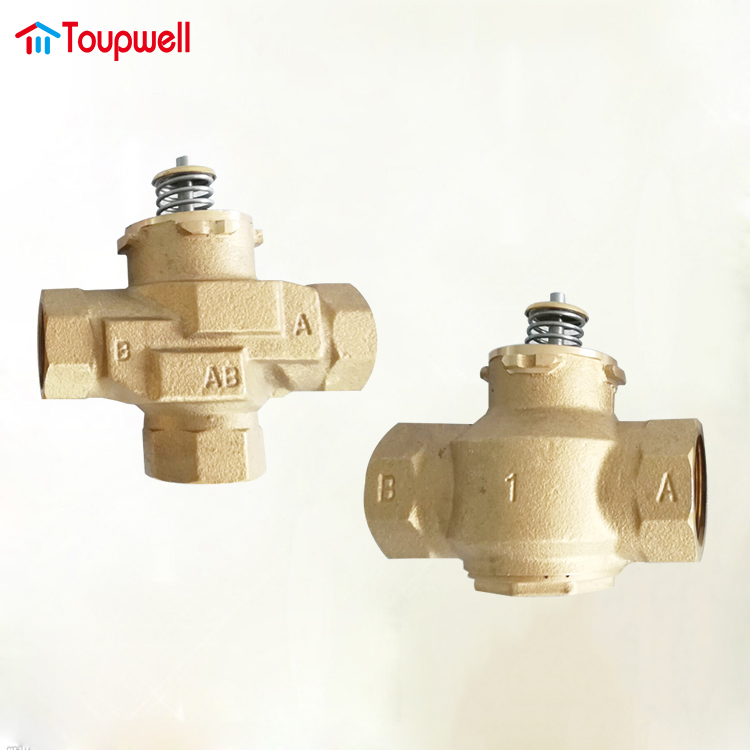

This series motorized valve is applicable to on-off control of air conditioner water system, is composed of driver and valve body. The valve body is forged by high-quanlity brass,the driver a dopts inflame resistant plastic, installed limit contact switch internally, the B-type driver internal relay can realize one line control and multi-valve parallel connection. The driver also provided with manual valve-opening machine for convenient debugging and pressure testing of system. This series motorized valve can match all kinds of thermostatic switch to realize the energy-saving function of the air conditioner system.

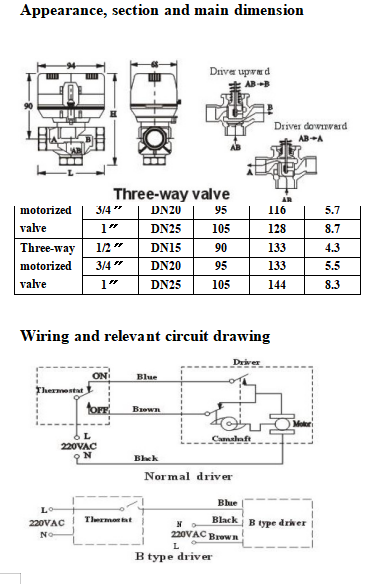

Technical Index:

1. Driving voltage: 220VAC(or 12V, 24V, 110V)

2. Power consumption: 5VA(only in on-off process)

3. Valve pressure: 2.0Mpa

4. Allowed pressure differential: 1.0Mpa

5. Applicable medium: cold water, hot water

6. Open and close time: 16 seconds for opening, 16 seconds for closing

7. Applicable medium temperature: 2℃~95℃

8. Applicable ambient temperature: 0℃~60℃
