Application: Water Underfloor Heating System/Hydronic Underfloor Heating System

*UL 94V0 PC anti fire housing to make sure saftely

*Large VA ink LCD is comfort to see even during dark night

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*WIFI/ZIGBEE/MODBUS flexiable communication way for you select

*Tuya/Smart life app to control your thermostat anywhere

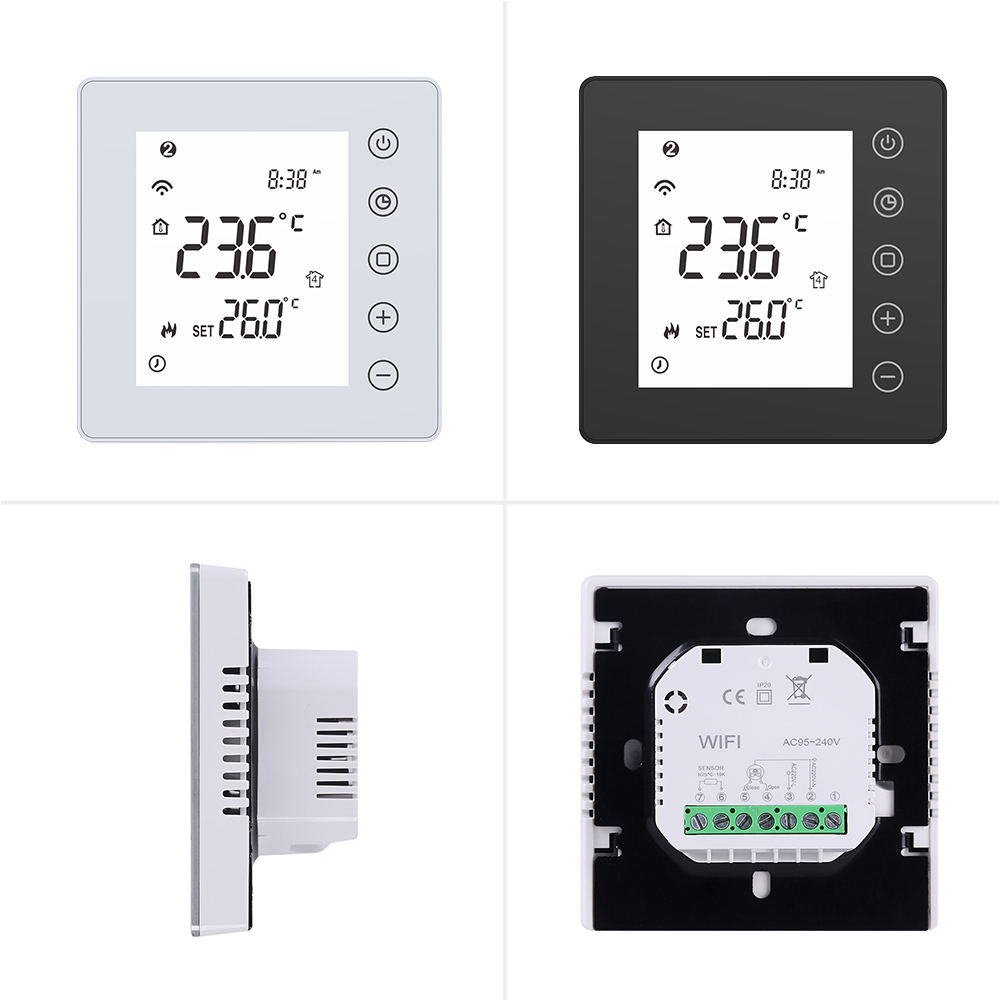

*White/Black/ODM color

*CE/ROHS/UKCA/FCC/REACH approved

This Large LCD display programmable thermostat is a thermostat which is suitable underfloor heating system.Appilcation system including

Electric heating,hydronic heating and gas boiler heating mostly.It could connect with external sensor to energy saving.

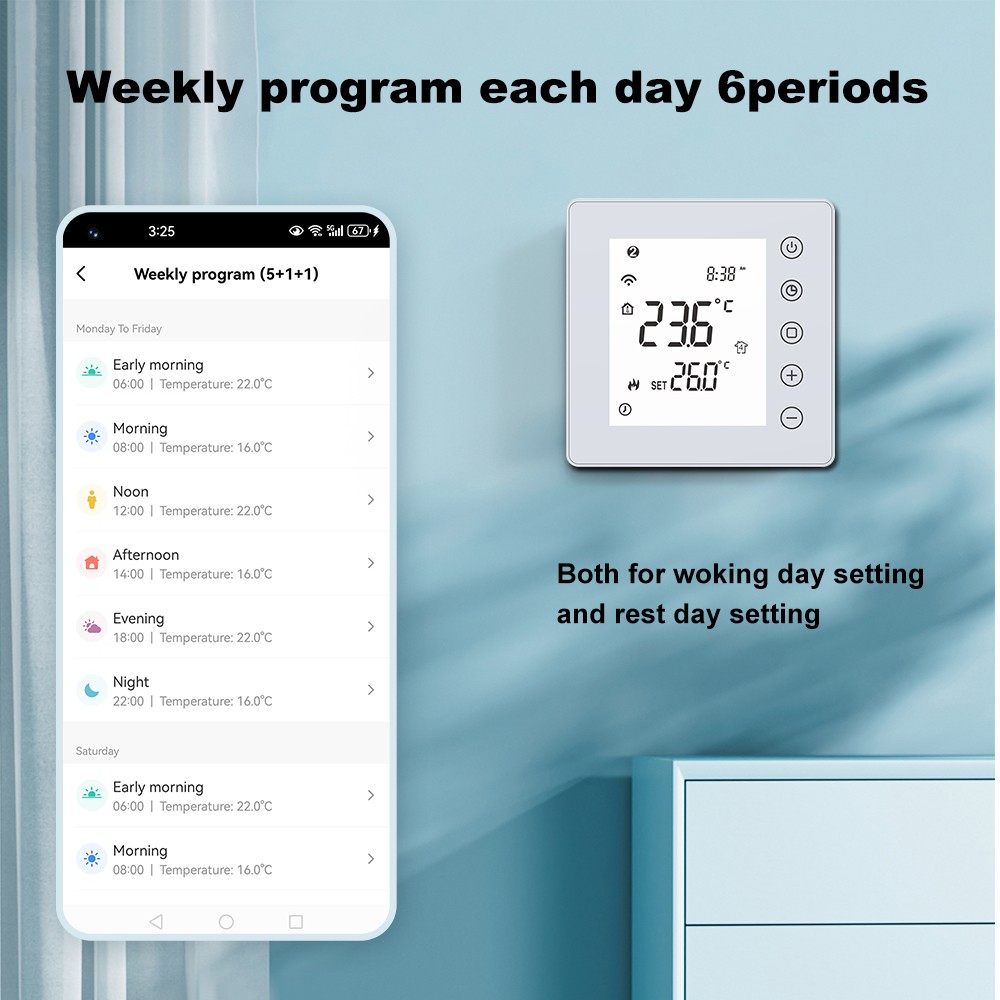

Normally it has weely program function each day 6periods to setting your desire room temp.

Child clock to protect thermostat not change by your child easily .24V/220V option.White/Black color option

Technical Data

Features	Parameters
Application	Underfloor Heating System/Water Heating System/Gas Boiler Heating System
Power	AC95- 240V/24V option, 50/ 60Hz
Controlled Load	water heater 5A/electric heater 16A
Mode	Programmable/Manaul Mode optional
Temperature Accuracy	+/-0.5℃
Temperature Range	5~60℃
Programmable function	5+1+1 Weekly Program
Button Lock Function	YES
Antifreeze Function	YES
Memory Function	YES
Temperature Sensor	Two Sensors(UHP model)/One senor(WHP model,GCmodel)
External Floor Sensor Length	2.5meters
Sensor	NTC 10k 3977
Installation Hole distance	86box/60mmEurope standard round box

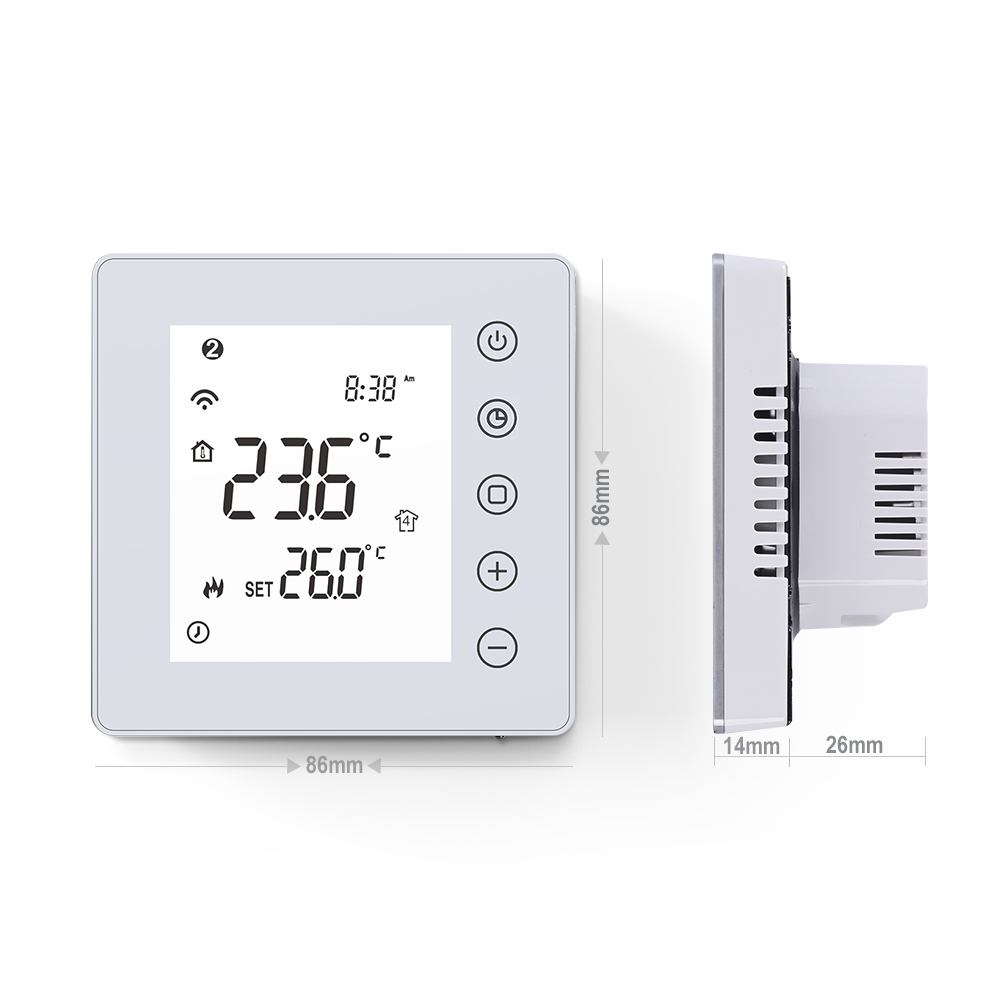

Dimension	86x86x40mm
