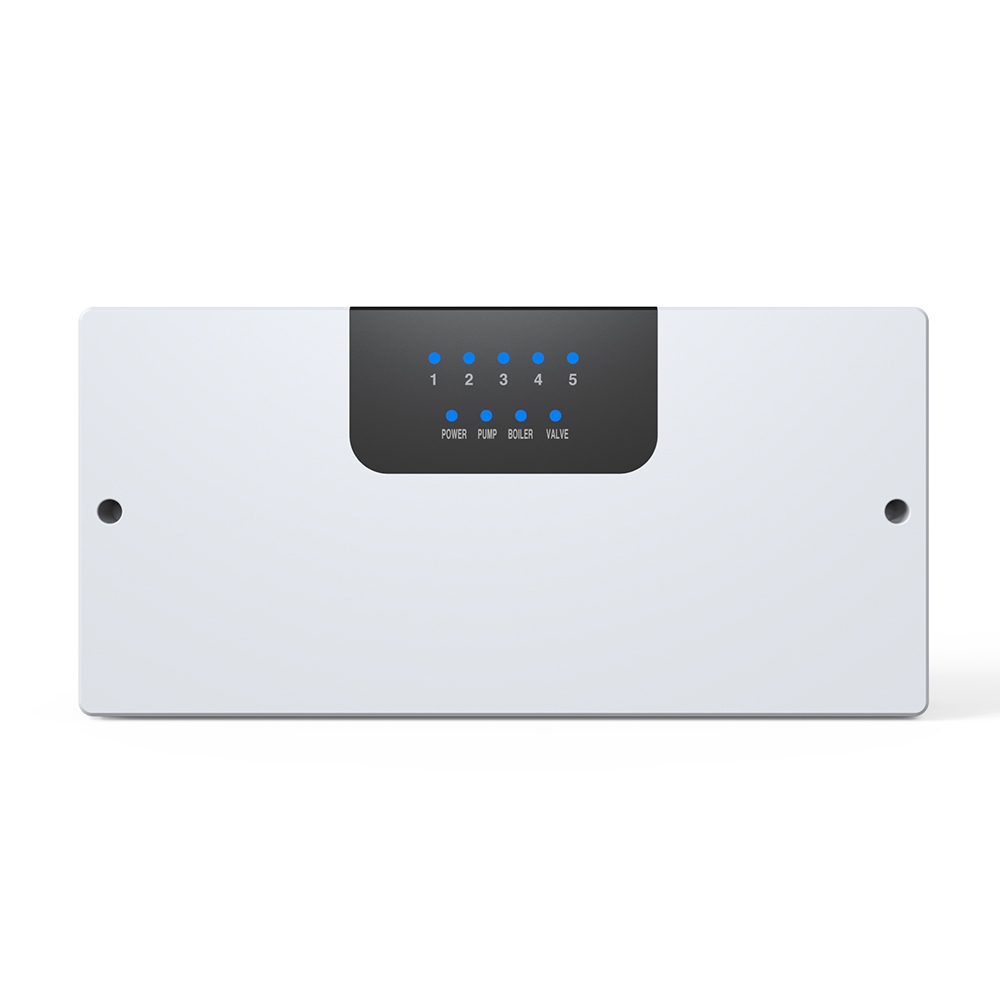

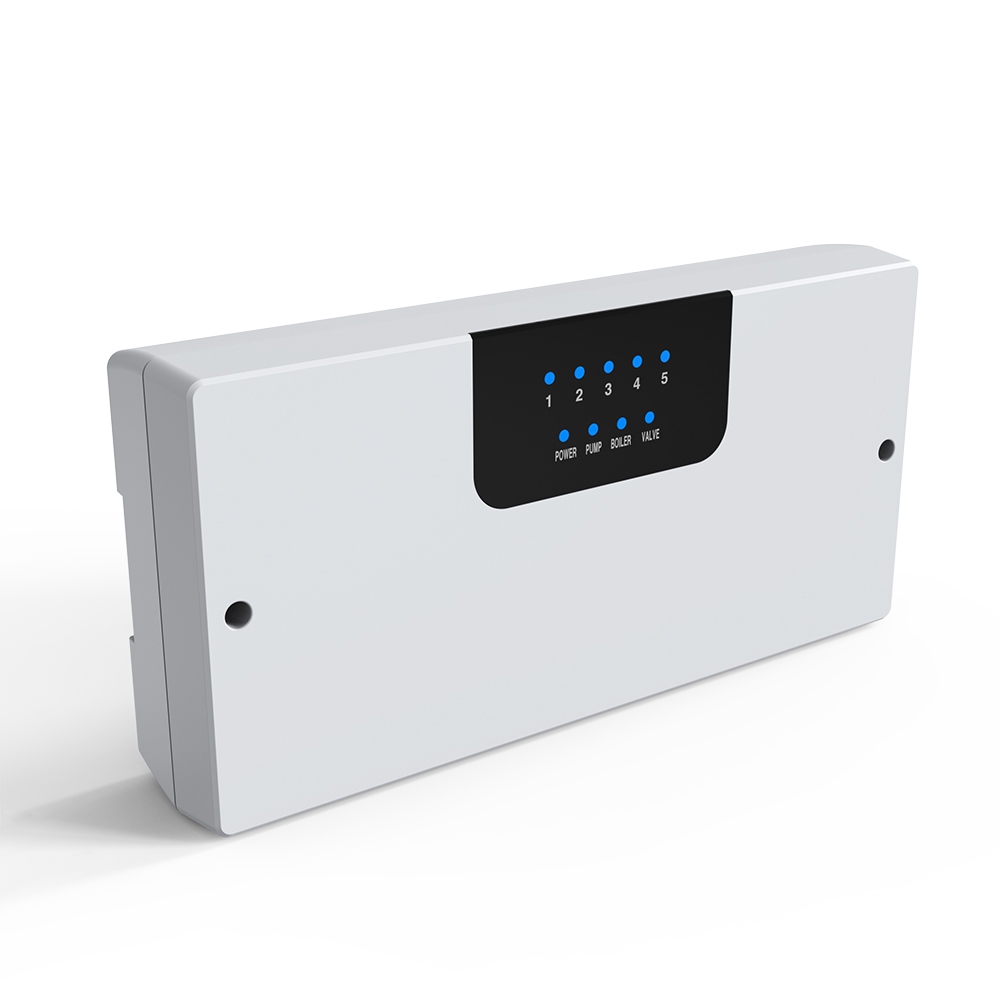

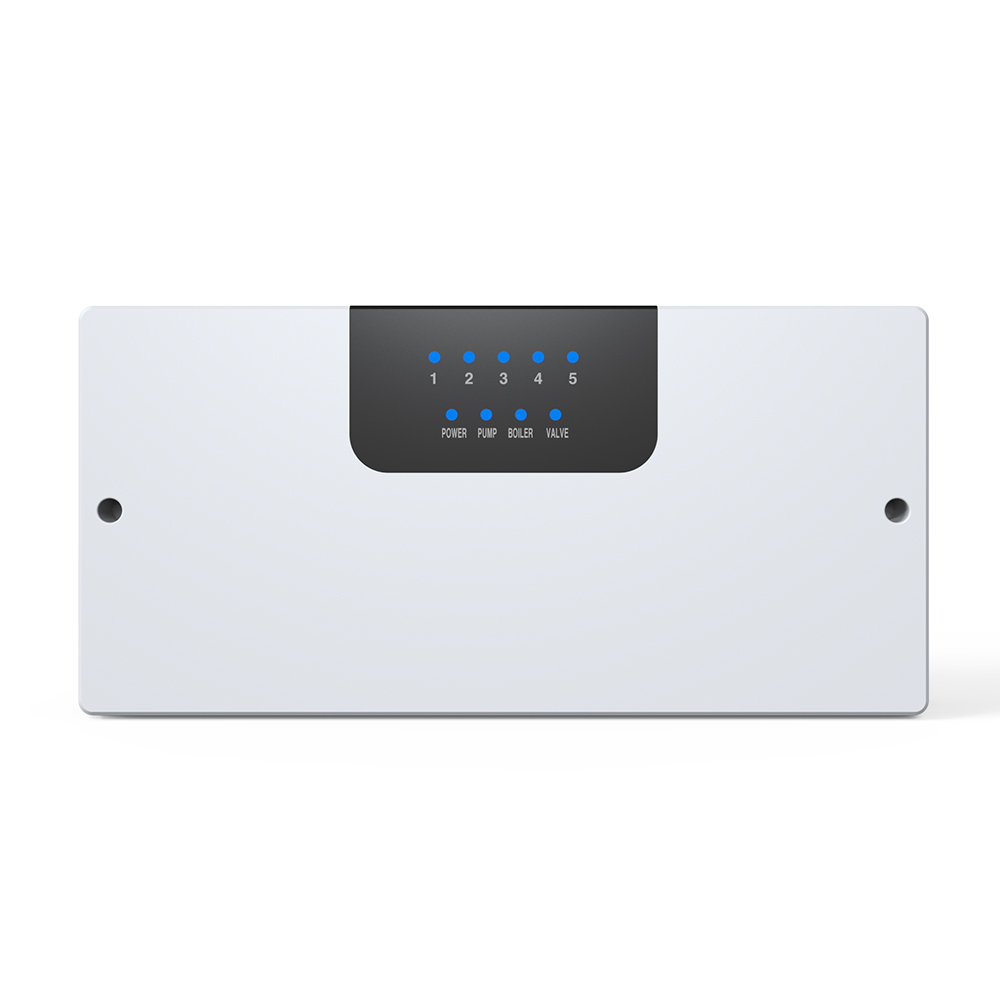

TPX05 wired wiring centre is designed to be used in conjunction with our cable thermostatsTP201/TP528/TP538/TP908/TP818 as at water underfloor heating system.

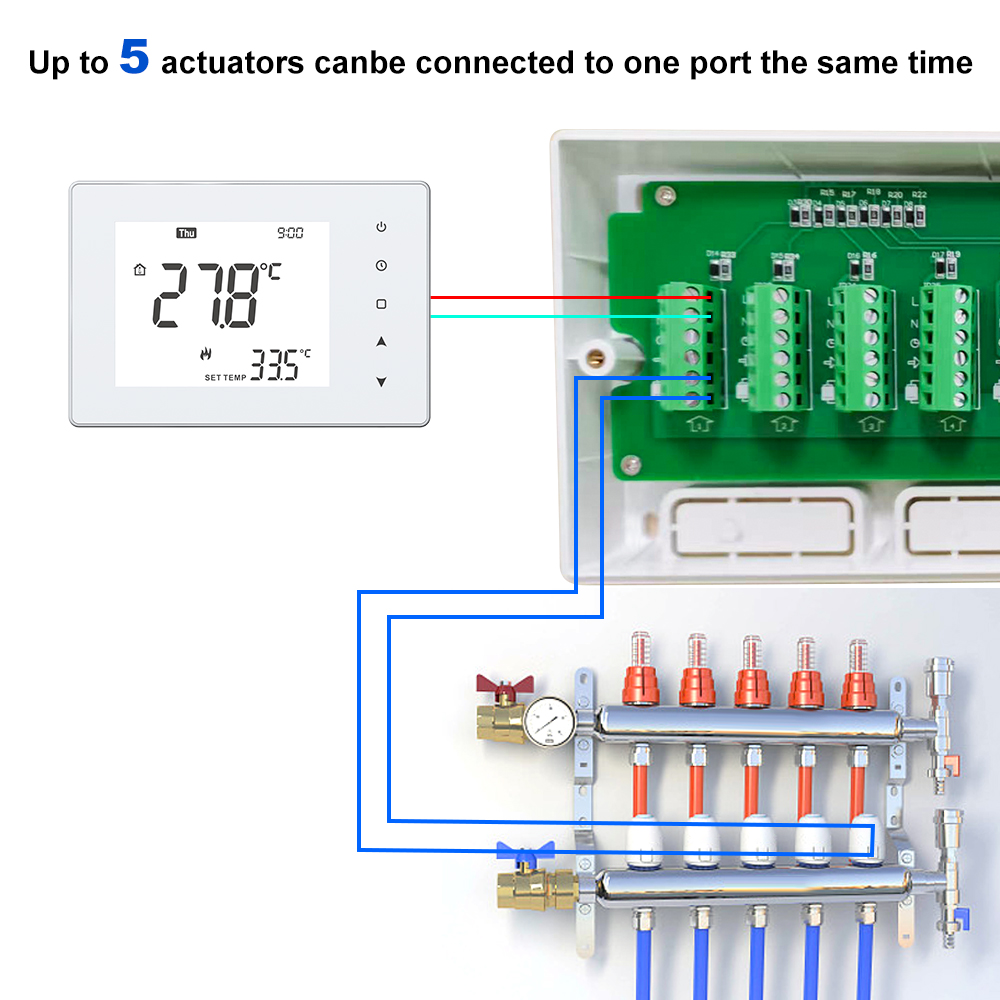

5 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
Item No.:TPX05
Can work up to 5 room thermostats and actuators
Max. 5 thermal actuator each zone
Convenient wiring and installation
Modbus ( Optional)/Zigbee/WIFI optional

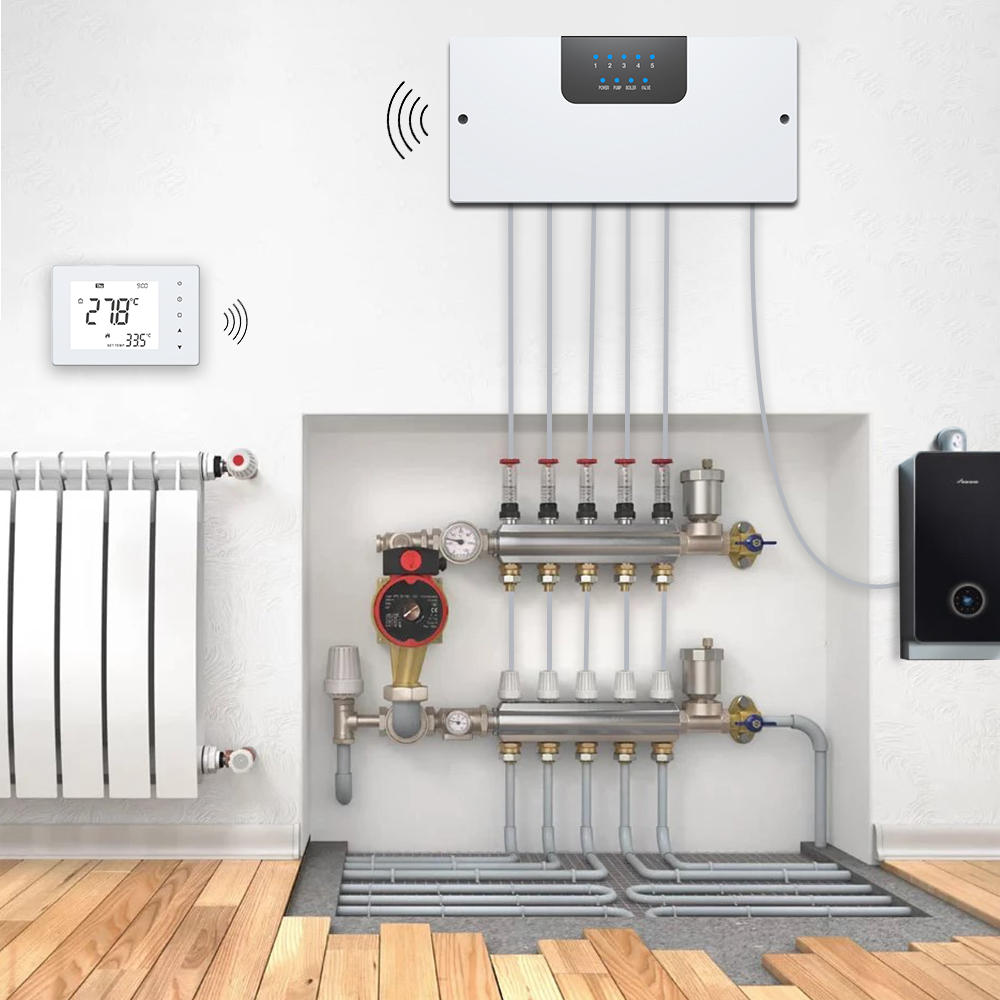

Our Wired underfloor heating wiring centres have been designed to simplify the wiring process. Using our wiring centres in your application means that the actuator,

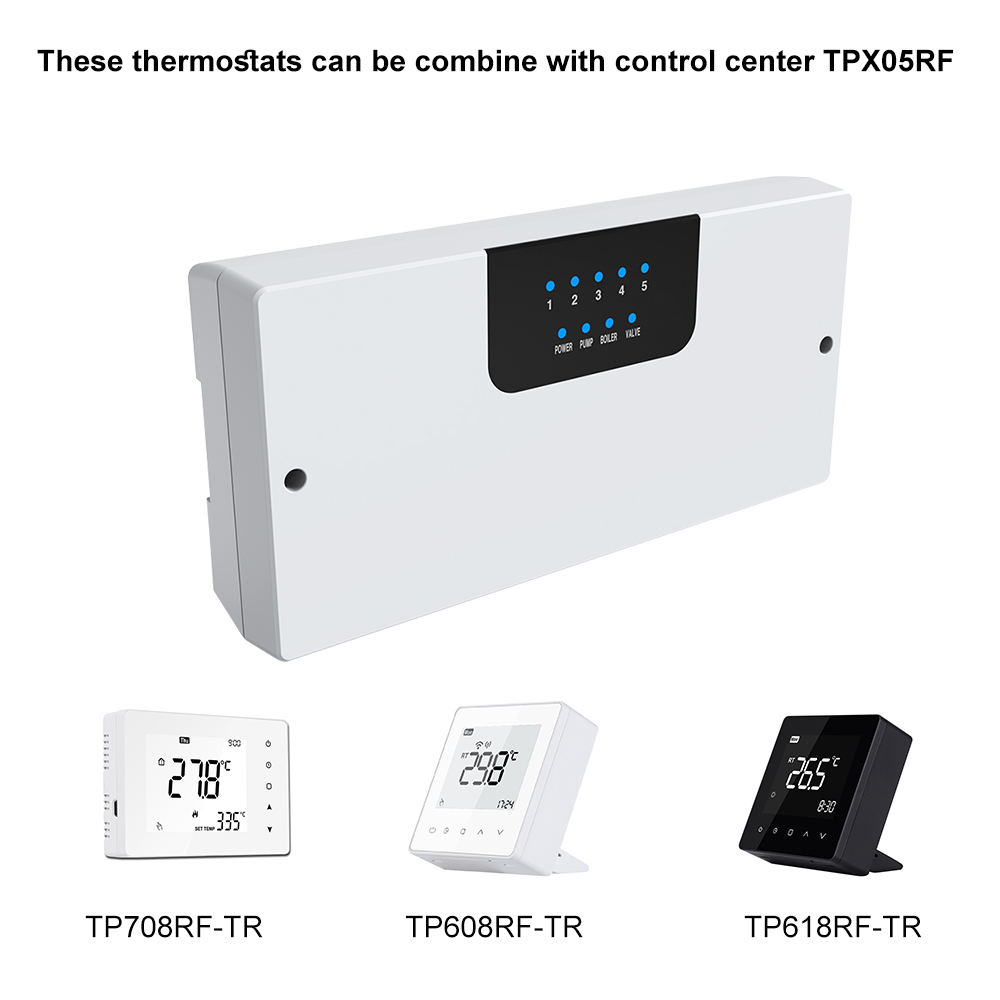

boiler and pump connections are wired from a single point. TPX05 is used in conjunction with our cable thermostat TP201/TP528/TP538/TP908/TP818
5 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
| Name | 5 Zones Wired Wiring Centre Control box for Underfloor Heating System |
| Power Supply | 230Vac |
| Boiler Output | Voltage-free |
| Pump Output | 230Vac |
| Max. Current | 5(2) A for each |
| Frequency | N/A |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Protection Class | IP20 |

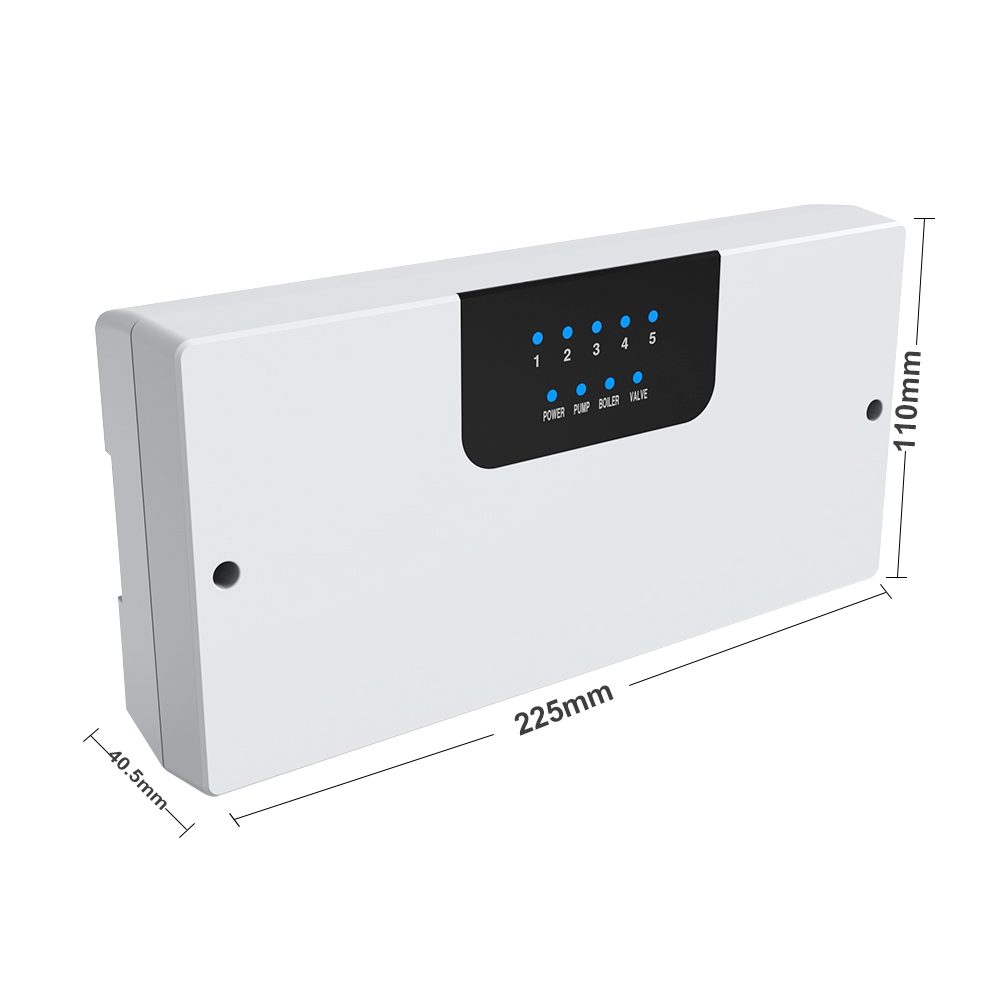

| Thermostat Dimension | 225mm x 110mm x 45.5mm. |
| Materils | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
