Zigbee thermostat

Zigbee thermostat

Tuya Zigbee 3.0 APP control Heating Room Thermostat

  • Description

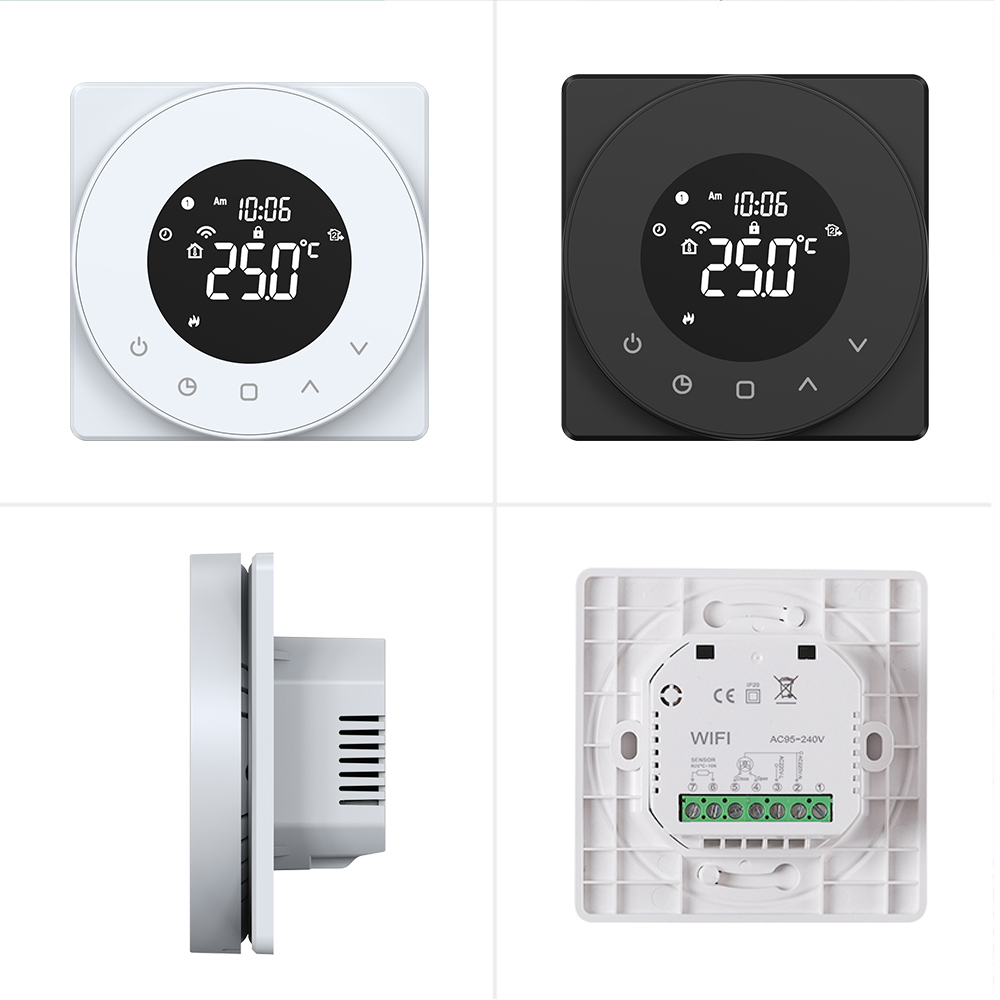

    TP909  tUYA zigbee 3.0 smart home touch Screen Heating room Thermostat


    TP909series round type VA LCD colorful display programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of settings that meet room comfort

     It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting,

    and switching it off once this set temperature has been reached.  It allows users to select different temperatures in your home at different times of the day

     to meet particular user’s needs and preferences. With APP control.You could control your room temperature anywhere.Voice control via :google.alexa yandex alice etc


    It could used  in Electrical or Water Underfloor Heating System. TP908 series thermostats are used to control 16A Electrical Heating Elements, such as heating cables, heating mats, heating films, etc.  TP908series thermostats are used to control 3A Water Heating Devices, such as actuators, etc.



    Technical Data



    Features Parameters

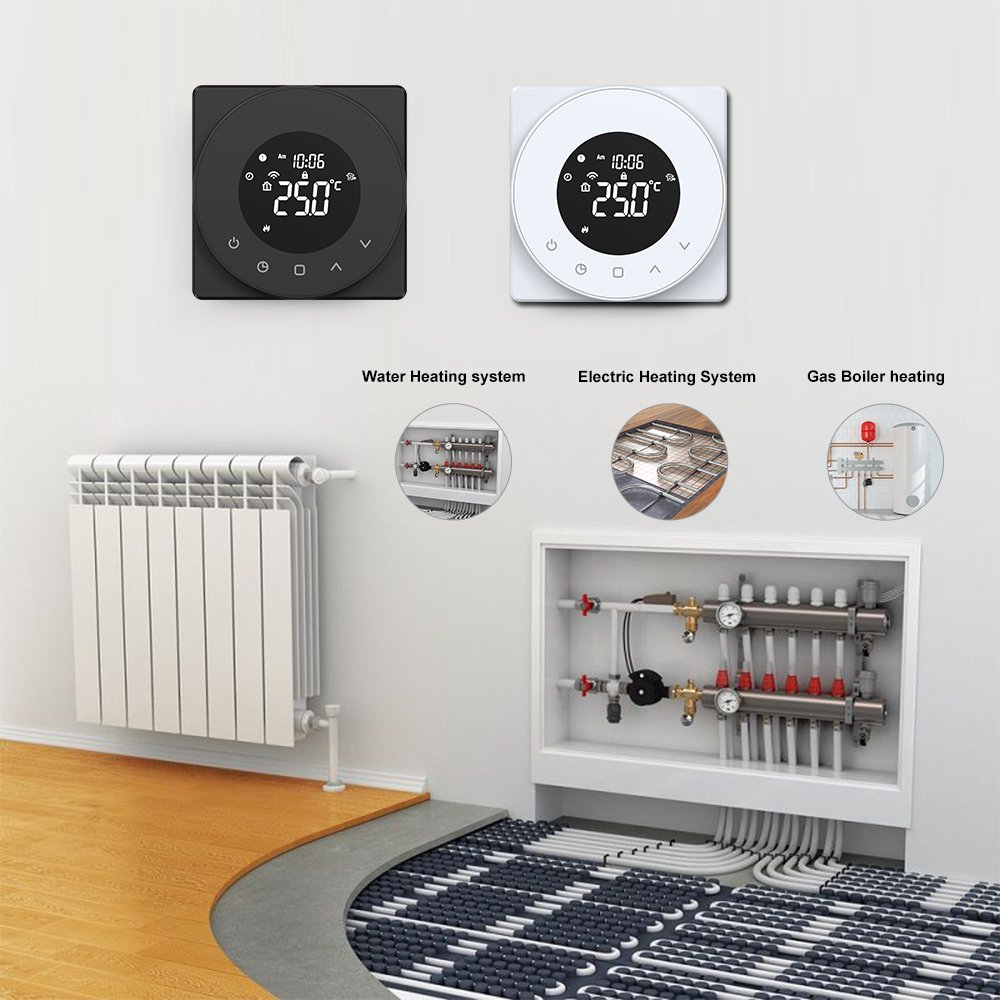

    Application Underfloor Heating System/Water Heating System/Gas Boiler Heating System
    Power
    AC95- 240V/24V option, 50/ 60Hz
    Controlled Load
    water heater 5A/electric heater 16A
    Mode Programmable/Manaul Mode optional
    Temperature Accuracy +/-0.5℃
    Temperature Range 5~60℃
    Programmable function 5+1+1 Weekly Program
    Button Lock Function YES
    Antifreeze Function YES
    Memory Function YES
    Temperature Sensor Two Sensors(UHP model)/One senor(WHP model,GCmodel)
    External Floor Sensor Length 2.5meters
    Sensor NTC 10k 3977
    Phone Application Tuya/Smart Life
    Voice Assistant Google Home/Amazon Alexa (only Wi-Fi models support)
    Installation Hole distance 86box/60mmEurope standard round box
    Dimension

    86x86x40mm
